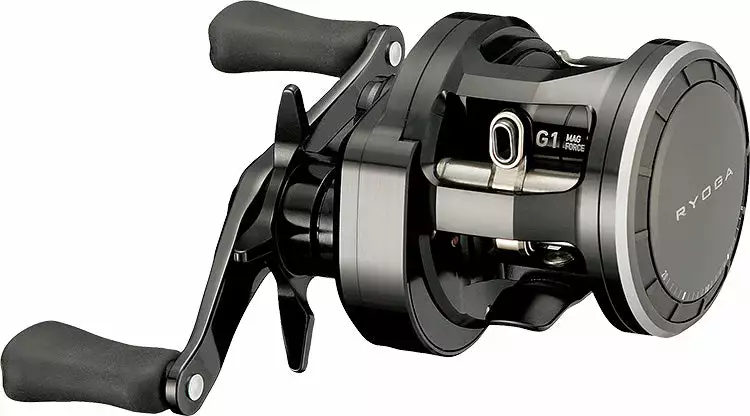

DAIWA 2018 Ryoga 1520-CC

A tough and tough RYOGA is reborn. Ultra-high rigidity and high-precision machine cut peculiar to RYOGA A new type housing that can be gripped lightly in pursuit of palming performance by applying its own precision machine cut to the super metal housing. And the winding sensitivity that surpasses conventional fishing. Even obstacles in the water are clearly transmitted, and even the story of catching a big bass is realized. That is the “DR (Detective Rotation)” design, which is a new design concept that pursues “winding” sensitivity. The best crazy crunker model for scrolls is the true value of the new RYOGA. Furthermore, a mag-shield ball bearing that protects against rust and ATD (with click sound) are used. The cutting edge of DAIWA round reels that are compatible with salt is here.

The first RYOGA was born in 2009 under the name of a tough legend. It is the first bait reel to be equipped with REAL FOUR, and it is the ultimate round shape that boasts excellent functional beauty due to the tough digital gear hidden inside and the machine-cut super metal housing on the outermost layer. So to speak, the innovative fusion of a large displacement engine and an ultra-rigid body is still being handed down, and its overwhelming strength and durability need not be said anymore.
Nine years after that, DAIWA Bait has gone through a turbulent era. Long-distance HLC, bait finesse AIR, and SV and TWS for trouble-free and comfortable performance. It is known that all of them have sought to improve castability and have focused on increasing the number of encounters with one fish that was previously out of reach. The best usability that can be obtained only with accelerator and brake work without the need for complicated shift work. Is it easy to understand when it comes to an automatic car that anyone can ride?
In 2018, DAIWA asked the next RYOGA for an unknown area that could be called Kansei engineering. While making full use of the cutting-edge reel technology that has been accumulated over a long period of time, he challenged the direction of improving the quality of sensibilities that cannot be expressed numerically. that is…

DAIWA’s original “DR (Detective Rotation) design” is a new design concept that directly connects rotational performance to fishing results. The basis for this was the optimization of the engine and body structure, which had even higher output.
The HYPER MESH gear system maintains extreme smoothness and light rotation by achieving high meshing accuracy of the gear tooth surface, which is 1.5 times that of the conventional system, and increasing the strength. While strengthening the housing that supports the large gear, the side plate structure on the palming side is thin and compact. We have realized a one-piece structure that allows you to feel the spool rotation more directly.
Smooth winding comfort and a reliable grip. The moment he put it in his hand and started rolling it, the angler gained an amazing advantage.

The optimal solution for the sensitivity of winding sensitivity . With the evolution of the gear and body as the axis, the new long handle of forged aluminum with high metal density and the high grip knob that is thin and non-slip without making it larger than necessary realizes torqueful and smooth handling. Furthermore, the rigid SiC line guide clearly transmits the vibration from the line to your hand. By assisting everything and synergizing each other, RYOGA’s rotational performance succeeded in detecting even slight changes in water.
It is strong and of course, high rotation performance alone is meaningless. DAIWA’s new challenge “DR Design” will open up the next world standard for round shape baits.

Zero adjuster The mechanical brake no longer needs to be adjusted again, only to suppress the backlash of the spool. The optimum braking force for each lure used was made possible only by adjusting the mag dial. * The 1520 series is equipped with the first high-grip I-shape power knob. ■ High Grip I Shape Light Knob A new shape of High Grip I Shape Light Knob. It was developed for the ultimate in thinness and a grip that sticks to your fingers. ■ G1 Duralumin MAG FORCE Z SPOOL The ultra-lightweight and ultra-high-precision “G1 Duralumin MAG FORCE Z” spool, which is finally installed in the new RYOGA, maintains high rotation and leads to growth in the latter half. The low trajectory growth during pitching is also excellent.

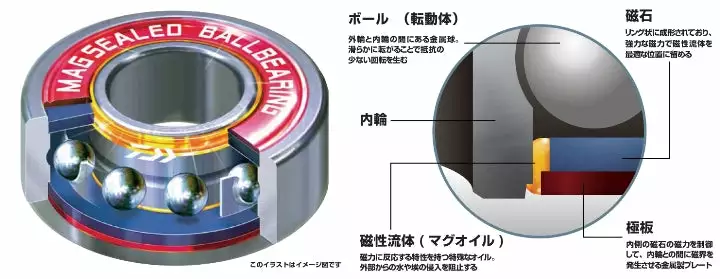

■ MAGSEA LED BALL BEARING Daiwa’s waterproof and durable technology ” MAGSE ALED BALL BEARING ” has the greatest merit of eliminating rust and abnormal noise of ball bearings and maintaining initial performance for a long period of time. To do. If almost all ball bearings, not only for reels, are used for a certain period of time, the rotational performance deteriorates due to the wear of the balls. However, conventional ball bearings for reels are often unusable due to salt stains and rust before the balls are worn. This changes completely with Mag Shield. Ball bearings will reach their “original life” without any maintenance. Further, since the mag-shield ball bearing has a non-contact structure in which mag oil fills a slight gap between the inner ring and the electrode plate, the rotational resistance is originally very small. The difference in rotational feel is clear when compared to bearings that use rubber packing inside for waterproofing. Smooth rotation with infinitely zero friction is maintained for a surprisingly long time without any special care. It goes without saying how groundbreaking this is. ■ HYPER MESH GEAR SYSTEM A new dimension of gear and housing system created against the background of Daiwa’s proud tough gear material and the extra durability brought about by the support of the full super metal housing. Succeeded in securing 1.5 times more than the conventional one. By improving the meshing, it leads to the improvement of durability, and even with a heavy load, the palming hand can be grasped without force, and smooth and light handling becomes possible. .. ■ ATD [Automatic Drag System] A new generation drag system that operates smoothly according to the pull of the fish and continues to work smoothly. For small spinning and electric reels, we pursued start-up and followability. For large spinning such as Saltiga, it is a setting that suppresses the decrease in drag force during fighting. Both were developed with the goal of being able to concentrate on fighting without worrying about drag settings. ■ MAGFORCE V / Z [MAGFORCE V / Z] The induct rotor that slides smoothly with centrifugal force according to the spool rotation speed applies the brake only in the backlash zone in the first half of the cast, and extends to release the brake in the second half. Brake system. ■ SPEED SHAFT [Speed ​​shaft] The spool is only supported by the BB. The shaftless makes the extra resistance zero and the ideal spool rotation can be obtained.
